Home | Products | Lodestar Series Floodlight
Products
Lodestar Series Floodlight

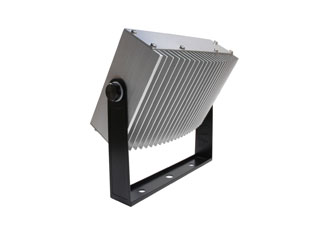

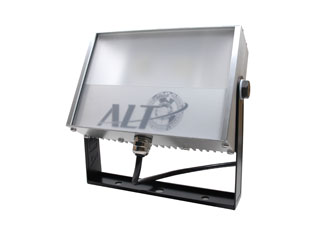

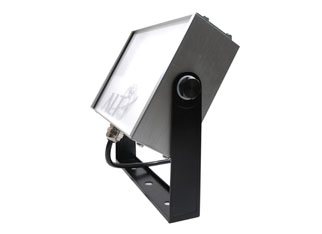

Floodlight F02 ( CREE / LUXEON / BRIDGELUX LED chipset )
25 Watts
Feature
*High quality LED chips from the world's top 5 chip manufacturers
  guarantee optimal luminance efficacy.
*High stability lighting in any climate thanks to current fluctuation
  protection.
*Original high-power LED chips, with multiple power supply circuit
  design options, offer incredible added value.
*PFC values up to 0.99 offering a stable voltage output, thus
  reducing energy consumption.
*IP 65 waterproof standard.
*CRI 80 high-brightness offer much improved night vision to
  increase pedestrian and vehicle safety.
Specifications
Base
Bare Wire
Power Consumption
25W、30W、46W、72W、92W、145W
Color
True White
Natural White
Warm White
Luminaire
Max. 1150-10500( lm ) ( True White )
Max. 1000-9600( lm ) ( Natural White)
Max. 800-8100( lm ) ( Warm White )
Beam Angle
20 / 24 / 30 / 60 / 90 / 130 / 135 /
120 x 50 / 120 x 60 / 135 x 50 Degree
CRI
80 ( True White )
80 ( Natural White )
80-82( Warm White )
Dimension
240 (L) x 85 (W) x 230 (H) mm
Working Voltage
100~240V AC
12V DC
24V DC
Weight
3.5-8kg
Operating Temp
-40°C ~ +50°C
Warranty
2 Years Limited
Regulatory
CE , FCC , RoHS , Laser Testing, LVD, ETL



Information in this document is subject to change without notice.
