NOTES
*M01:
The format of M01 is the most effective design
of thermal conductivity within the MR16
series.
*M02:
In compliance with ANSI standard, can be
installed in any MR16
fixtures. |
|

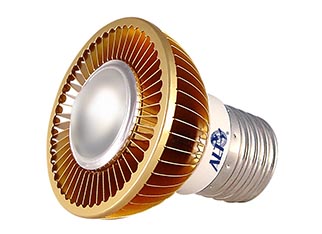

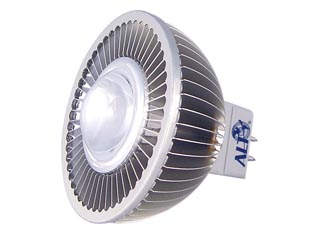

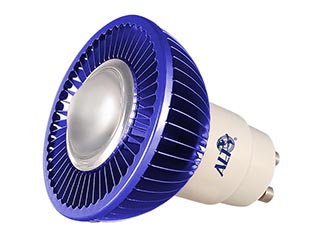

Asteria Series V3 ( CREE
/ LUXEON / BRIDGELUX LED chipset )
1
Watts |
|
Feature |
-
High quality LED chips from
the world's top 5 chip manufacturers guarantee
optimal luminance efficacy.
-
High density aluminium
housing ensures increased heat
dissipation.
-
Long lifespan full range (
100~240V ) power supply design.
-
Asteria
series MR16 is majorly used for
international standards of MR16 - E11, E12, E14,
E17, E26 /
27,
E26 / 24, EZ10, GX5.3 / GU5.3, GU10 / GZ10,
B22D, BA15D, BA15S. It is suitable for all MR16
series in different bases for indoor
luminaries. |
|
Specifications |
|
Base |
E11,
E12, E14, E26/27, E26/24, EZ10, GU10/GZ10,
GX5.3/GU5.3, E17, B22D, BA15D,
BA15S |
|
Power Consumption |
1W、3W、7W(
LUXEON LED chipset ) |
|
Color |
True
White
Natural White
Warm
White
Red
Green
Blue |
|
Luminous Intensity |
Max. 320-520-820(cd) ( True
White )
Max. 285-460(cd) ( Natural
White )
Max. 190-320-650(cd) ( Warm
White )
Max. 50-80(cd) ( Red
)
Max. 220-390(cd) ( Green
)
Max. 20-35(cd) ( Blue
) |
|
Beam Angle |
38 /
60 / 80 / 120 Degree |
|
CRI |
80,
90 |
|
Operating Temp |
-20°C
~ +40°C |
|
Warranty |
2
Years Limited |
|
Regulatory |
RoHS,
Laser Testing, CE, FCC, UL, cUL, TÜV, LVD,
C-Tick,
REACH | |
|
