NOTES
*M01:
The format of M01 is the most effective design
of thermal conductivity within the MR16
series.
*M02:
In compliance with ANSI standard, can be
installed in any MR16
fixtures. |
|

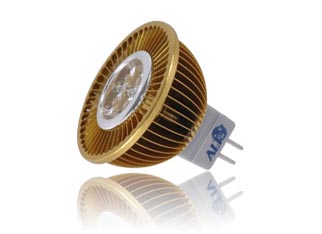

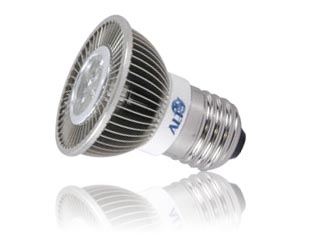

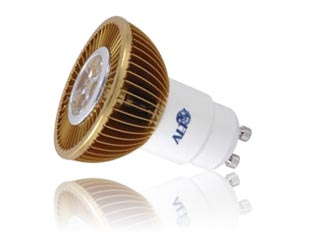

Asteria Series V4 ( CREE
LED chipset )
7
Watts |
|
Feature |
-
High quality LED chips from
the world's top 5 chip manufacturers guarantee
optimal luminance efficacy.
-
High density aluminium
housing ensures increased heat
dissipation.
-
Long lifespan full range (
100~240V ) power supply design.
-
Asteria
series MR16 is majorly used for
international standards of MR16 - E11, E12, E14,
E17, E26 / 27, E26 / 24, EZ10, GX5.3 / GU5.3,
GU10 / GZ10, B22D, BA15D, BA15S. It is suitable
for all MR16 series in different bases for
indoor
luminaries. |
|
Specifications |
|
Base |
E11,
E12, E14, E26/27, E26/24, EZ10, GU10/GZ10,
GX5.3/GU5.3, E17, B22D, BA15D,
BA15S |
|
Power Consumption |
7W |
|
Color |
True
White
Natural White
Warm
White |
|
Luminous Intensity |
Max. 2600(cd) ( True
White )
Max. 2250 (cd) ( Natural
White )
Max. 2100 (cd) ( Warm
White ) |
|
Beam Angle |
25 /
120 Degree |
|
CRI |
80 |
|
Operating Temp |
-20°C
~ +40°C |
|
Warranty |
2
Years Limited |
|
Regulatory |
RoHS,
Laser Testing, CE, FCC, UL, cUL, TÜV, LVD,
C-Tick,
REACH | |
|
