LED Lighting Solutions – Joy LED Lighting Product Series

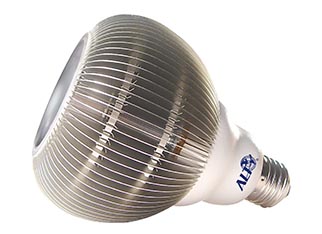

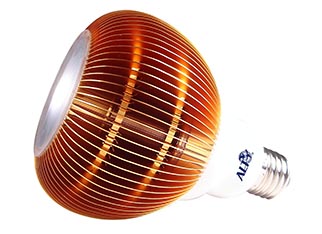

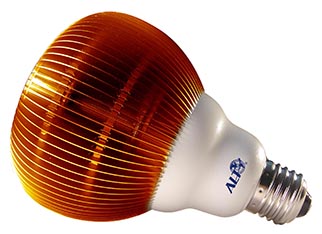

BR30 ( CREE / LUXEON / BRIDGELUX LED / EPISTAR chipset )
12 Watts ( EPISTAR LED chipset )

Feature

*Designed to IED standards, the BR30 ( PAR30 ) series offers an

optimal heat sink to assure maximum heat dissipation.

*Solid State LED BR30 ( PAR30 ) series from Joy conform to

E26/27 and E26/24 standards and can be used for all E26/27

and E26/24 indoor luminaries.

Specifications

Base	E26/24 ( US ) , E26/27 ( Euro )
Power Consumption	12W
Color	True White Natural White Warm White
Luminous Intensity	Max. 650 (cd) ( Ture White ) Max. 590 (cd) ( Natural White ) Max. 500 (cd) ( Warm White )
Beam Angle	60 / 72 / 120 Degree
CRI	70
Dimension (mm)	Ø98x133.5
Working Voltage	100~240V AC
Weight	260g
Operating Temp	-20°C ~ +40°C
Warranty	2 Years Limited
Regulatory	CE , FCC , RoHS , Laser Testing, UL, cUL, TÜV, C-tick, REACH
