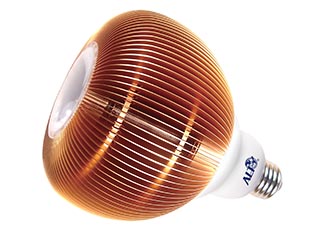

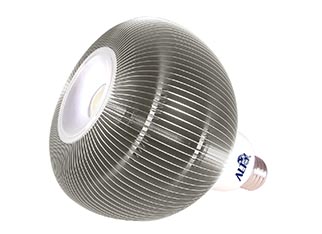

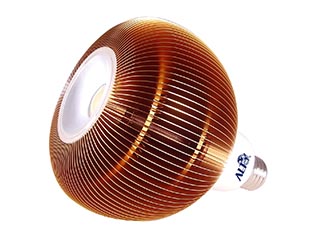

Asteria BR30/BR40

LED Lighting - BR40 Specifications

BR40 ( CREE / BRIDGELUX LED chipset )
20 Watts
Feature
*The first high power LED to achieve general lighting requirement.
*Designed to IED standards, the BR40 ( PAR38 ) series offers an
  optimal heat sink to assure maximum heat dissipation.
*Solid State LED BR40 ( PAR38 ) series from Joy conform to
  E26/27 and E26/24 standards and can be used for all E26/27
  and E26/24 indoor luminaries.
Specifications
Base
E26/24 ( US ) , E26/27 ( Euro )
Power Consumption
20W ( BRIDGELUX LED chipset )
Color
True White
Natural White
Warm White
Luminous Intensity
Max. 1450 (cd) ( Ture White )
Max. 1200 (cd) ( Natural White )
Max. 980 (cd) ( Warm White )
Beam Angle
60 / 72 / 120 Degree
CRI
65 ( True White )
80 ( Natural White )
82 ( Warm White )
Dimension (mm)
Ø126.7 x 161
Working Voltage
100~240V AC
Weight
430g
Operating Temp
-20°C ~ +40°C
Warranty
2 Years Limited
Regulatory
CE , FCC , RoHS , Laser Testing, UL, cUL, TÜV, C-tick, REACH




Information in this document is subject to change without notice.
