NOTES
*M01:
The format of M01 is the most effective design
of thermal conductivity within the MR16
series.
*M02:
In compliance with ANSI standard, can be
installed in any MR16
fixtures. |
|

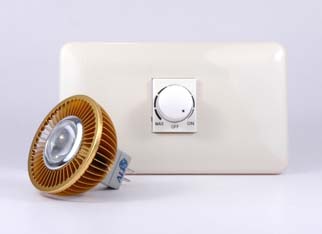

Asteria Series V1 MR16
Dimmable ( ALT Dimmer )
7
Watts |
|
Feature |
-
Proprietary DC dimming
technology; no flicker.
-
Integrated structural design
to ensure maximal heat dissipation.
-
Smooth dimming function fades
from 100% to 0% light output without
flicker. |
|
Specifications |
|
Base |
E11,
E12, E14, E17, E26/27, E26/24, GU10/GZ10,
GX5.3/GU5.3, B22D, BA15D, BA15S,
EZ10 |
|
Power Consumption |
7W |
|
Color |
True
White
Natural White
Warm
White
Red
Green
Blue |
|
Luminous Intensity |
Max. 430 (cd) ( True
White )
Max. 370 (cd) ( Natural
White )
Max. 340 (cd) ( Warm
White )
Max.
180 (cd) ( Red )
Max. 350 (cd) ( Green
)
Max. 25 (cd) ( Blue
) |
|
Beam Angle |
38 / 60 / 80 /
120 Degree |
|
CRI |
70 |
|
Operating Temp |
-20°C
~ +40°C |
|
Warranty |
2
Years Limited |
|
Regulatory |
RoHS,
Laser Testing,
REACH | |
|
