NOTES
*M01:
The format of M01 is the most effective design
of thermal conductivity within the MR16
series.
*M02:
In compliance with ANSI standard, can be
installed in any MR16
fixtures. |
|

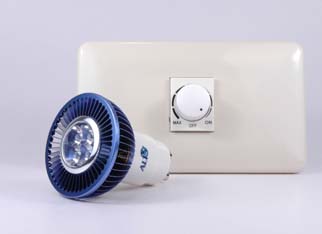

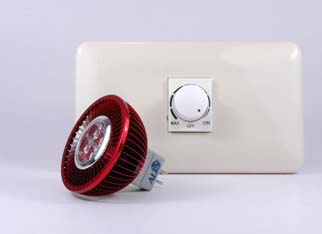

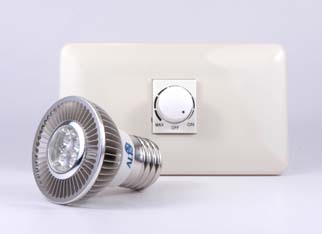

Asteria Series V4 MR16
Dimmble ( ALT Dimmer )
7
Watts |
|
Feature |
-
Proprietary DC dimming
technology; no flicker.
-
Integrated structural design
to ensure maximal heat dissipation.
-
Smooth dimming function fades
from 100% to 0% light output without
flicker.
-
High quality LED chips from
the world's top 5 chip manufacturers guarantee
optimal luminance
efficacy. |
|
Specifications |
|
Base |
E11,
E12, E14, E17, E26/27, E26/24, EZ10, GU10/GZ10,
GX5.3/GU5.3, B22D, BA15D,
BA15S |
|
Power Consumption |
7W |
|
Color |
True
White
Natural White
Warm
White
Red
Green
Blue |
|
Luminous Intensity |
Max. 2600 (cd) (True
White )
Max. 2250 (cd) ( Natural
White )
Max. 2100 (cd) ( Warm
White )
Max. 240 (cd)
( Red )
Max. 1500 (cd) ( Green
)
Max.
150 (cd) ( Blue ) |
|
Beam Angle |
25 /
38 / 45 / 72 / 120
Degree |
|
CRI |
80 (
True Whie )
80 (
Natural White )
80 (
Warm White ) |
|
Operating Temp |
-20°C
~ +40°C |
|
Warranty |
2
Years Limited |
|
Regulatory |
RoHS,
Laser Testing,
REACH | |
|
